A purpose-built one or two head machine for depositing oil or cream cheeses over a variety of products. Mounted on a fully-adjustable height stand, the machine uses unique multi-outlet falling pin nozzles to give a drip-free cut-off. The product is drawn directly from bulk vessels, thus eliminating the use of a hopper.
The Dimension range is precision engineered, with many unique features which eliminate the old issues of reliability, accuracy, performance and safety. To this end Steck’s new Dimension range has addressed the issues with features that include:
Power: Reduced power consumption
Frame Work: Mid Level, Adjustable height
Product Feed: Feed pipe suction
Construction: Robust construction
NEMA: NEMA 4X fully sealed pneumatics for protection from sanitation operations
Heads: 1 Head

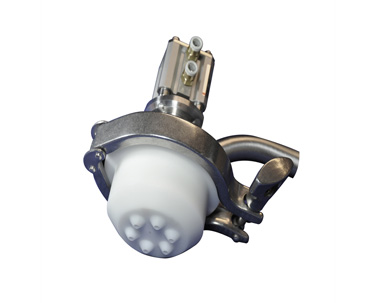

Nozzles: Oil pin nozzle
Weight Control: Analogue
Maximum supply pressure: 145 psi
Minimum supply pressure: 58 psi
Power cylinder bore: 3-1/8”
Power cylinder stroke (max): 6”
Power cylinder stroke (min): 3/8”
Stroke repeatability: 0.03%
Maximum depositing energy: 450 J (90 psi supply)
Maximum depositing force: 3015N (90 psi supply)
Maximum speed at full stroke: 70 (strokes/min)
Maximum speed at min stroke: 240 (stokes/min)
SPR (Suction Pressure Regulation: 0 - 58 psi
Maximum air consumption: 14 cfm
Typical air consumption: 6.5 cfm

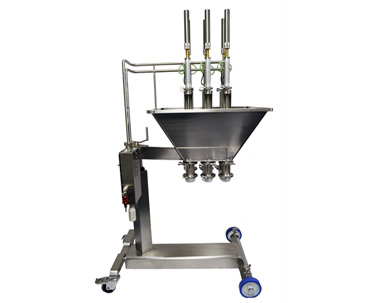

Vacuum Fill Pump

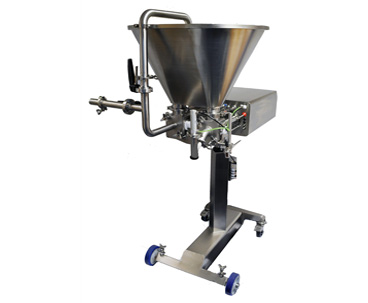

Twin Head Dual
