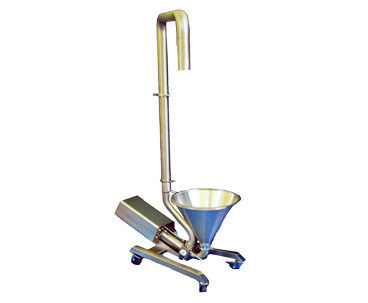

The Dimension range of transfer pumps from Steck are capable of handling the widest range of products from water to high viscosity particulate products.
The Dimension range is precision engineered, with many unique features which eliminate the old issues of reliability, accuracy, performance and safety. To this end Steck’s new Dimension range has addressed the issues with features that include:
Air Circuit: Steck pilot less air circuit (including safety circuit)
Power: Reduced power consumption
Energy: Zero Stored Energy in tripped mode
Engine Action: Unique reversible action
Frame Work: High or Low Level, fixed height
Positive Drive: Patented ‘Steck-Link’ valve drive system
Suction: Suction, pressure or flooded suction feed
Pipe Work: Inlet and outlet pipe work to suit any application
Interchangeable: Wet end parts interchangeable with Steck’s Dimension depositor range
Reduced Maintenance: Fully modular ‘cassetted’ engine design for ease of maintenance
Construction: Robust construction
Protection: Sealed main air cylinder, Spill back space
NEMA: NEMA 4X fully sealed pneumatics for protection from sanitation operations
Heads: 1 or 2 Heads
Maximum supply pressure: 145 psi
Minimum supply pressure: 58 psi
Power cylinder bore: 3-1/8”
Power cylinder stroke (max): 6”
Power cylinder stroke (min): 3/8”
Stroke repeatability: 0.03%
Maximum depositing energy: 450 J (90 psi supply)
Maximum depositing force: 3015N (90 psi supply)
Maximum speed at full stroke: 70 (strokes/min)
Maximum speed at min stroke: 240 (stokes/min)
SPR (Suction Pressure Regulation: 0 - 58 psi
Maximum air consumption: 14 cfm
Typical air consumption: 6.5 cfm
Single Head
Low Level"
Sandwich Fillings
Transfer Pump
Special Applications
